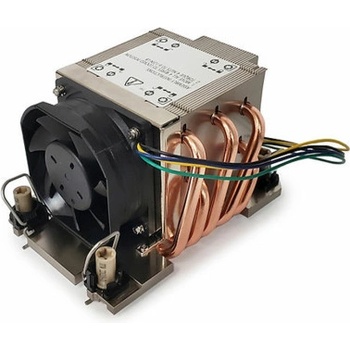

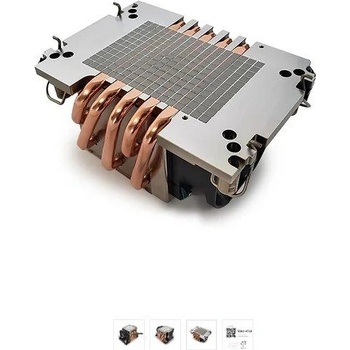

Dynatron S5R1-4710

CPU Support

Intel® Granite Rapids SP

CPU Socket

FCLGA 4710

Screw Type #8-32

Installation Torque 8 in-lb

Solution 2U Server and Up

Dimensions 118 x 82 x 67 mm

Weight 490 ±10 g

Material 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack

Fan Dimension 60 x 60 x 25 mm

Speed

• At Duty Cycle 0~20%: 2300± 200 RPM
• At Duty Cycle 50%: 5400± 10% RPM
• At Duty Cycle 100%: 11000±10% RPM

Rated Voltage 12V

Bearing

Double Ball

Power

• At Duty Cycle 0~20%: 0.84 W
• At Duty Cycle 50%: 2.76 W
• At Duty Cycle 100%: 18.0 W

Air Flow

• At Duty Cycle 0~20%: 11.91 CFM
• At Duty Cycle 50%: 28.38 CFM
• At Duty Cycle 100%: 58.31 CFM

Noise Level

• At Duty Cycle 0~20%: 25.8 dBA
• At Duty Cycle 50%: 44.4 dBA
• At Duty Cycle 100%: 59.8 dBA

Air Pressure

• At Duty Cycle 0~20%: 1.48 mm-H2O
• At Duty Cycle 50%: 7.54 mm-H2O
• At Duty Cycle 100%: 28.8 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)

Pin#2- Yellow(+)

Pin#3- Green(Tachometer/ Signal Output)

Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu X23-8079-2

Life – Continuous operating under normal temperature (40 °C or 104 °F) 70,000 Hours
