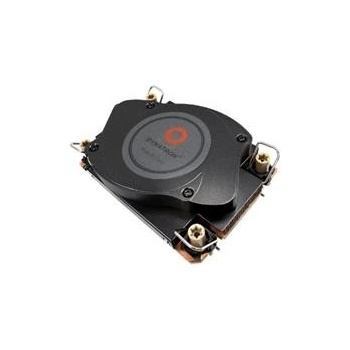

Dynatron N3

N3

Recommend for Intel® Whitley Platform Cooper Lake and Ice Lake Processors, LGA 4189 sockets, Active Cooler for 1U Server, Copper Heatsink with Vapor Chamber Base, Steel PWM Blower, Support 205 Watts CPU Power Heat Dissipation.

Additional Information

CPU Support

Intel

CPU Socket

FCLGA 4189-4/5(Socket P4/P5 or P+)

Solution 1U Server and Up

Dimensions 113.0 x 80 x 27 mm

Weight 410 g

Material

Copper1100 Heatsink with Vapor Chamber Base

Fan Dimension 80 x 13 mm

Speed

• At Duty Cycle 0~20%: 2000 ± 200 RPM
• At Duty Cycle 50%: 4900 ± 10% RPM
• At Duty Cycle 100%: 8600 ± 10% RPM

Rated Voltage 12V

Bearing 2 Ball Bearing

Power

• At Duty Cycle 20%: 1.08 W
• At Duty Cycle 50%: 4.7 W
• At Duty Cycle 100%: 23.45 W

Air Flow

• At Duty Cycle 20%: 5.59 CFM
• At Duty Cycle 50%: 14.76 CFM
• At Duty Cycle 100%: 26.25 CFM

Noise Level

• At Duty Cycle 20%: 23.3 dBA
• At Duty Cycle 50%: 43.5 dBA
• At Duty Cycle 100%: 62.2 dBA

Air Pressure

• At Duty Cycle 20%: 3.69 mm-H2O
• At Duty Cycle 50%: 25.28 mm-H2O
• At Duty Cycle 100%: 89.80 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)

Pin#2- Yellow(+)

Pin#3- Green(Tachometer/ Signal Output)

Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed *All product specifications and product images are subject to change without notice.
